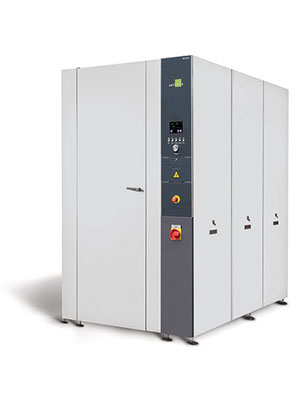

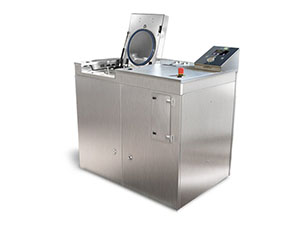

Celitron’s medical hazardous waste solution, the Integrated Sterilizer & Shredder (ISS),is a steam sterilizer with an integrated shredder, designed for on-site conversion of biological infectious medical waste in hospitals and clinics, complying the EU and WHO recommendations.
The Integrated Sterilizer and Shredder line contains models with 25, 150 and 560-liter capacity, suitable for dialysis centers, laboratories, clinics and hospitals. These health-care facilities with our eco-friendly non-incineration technology are able to reduce the cost on the biomedical waste disposal, while minimizing the risk of cross-contamination as the entire process is done within one single vessel.
These models have been sold to 40+ countries in Europe, the Middle East, Latin-America, Africa and Asia. Operators have received these models positively, reporting that they are simpler, more convenient and significantly cheaper to use.
Our medical waste sterilization and shredding models use only steam and electricity to process highly infectious hospital waste on-site, without emitting harmful substances.
The entire process is automatic, including opening and closing the door, and the sequences of shredding and sterilization. Depending on the capacity, the total cycle time can be as fast as 15-35 minutes, with up to 150 kg of medical waste can be processed.
After being treated in the ISS, the waste is sterile. The liquid components of the waste are steamed out of the vessel, re-condensed and drained to a municipal sewer. As the waste is dehydrated, there is no risk of contaminated waste water. The waste is rendered, fragmented, non-toxic, largely solid and dry and therefore safe to be disposed of as regular municipal waste.

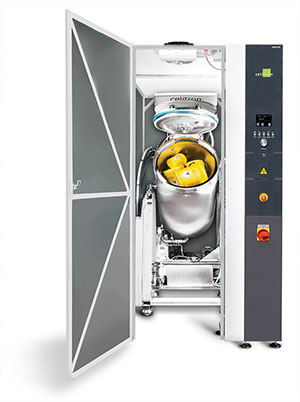

The high grade (316L) stainless steel vessel conforms to the Pressure Equipment Directive (PED) and is fitted with a motor-driven shaft ,with powerful shredding / crushing blades that can rotate in two directions to reduce the size and volume of the waste down to 20%. The vessel is constructed with internal sprinklers for automatic cleaning and is equipped with one door, provided with an automatic locking mechanism.
The blades are mounted on the shaft and are designed to shred biomedical waste such as sharps, dialyzers, syringes, papers, cloth, plastic and glass. Shredding is important as it enhances the steam penetration therefore improves the overall sterilization results (SAL > 6log10).
The steam is produced by a steam generator, supplied by water purification (reverse osmosis system) and draining system as standard accessories.
The microprocessor based control system automatically controls all cycles. The system includes a digital full color touch-screen LCD display, communication, self and remote diagnosis and PC connection for external documentation and printing. The displayed information is available for users in a variety of languages. During the waste sterilization cycle the control system measures, controls and shows in digital display: the time, chamber temperature, chamber pressure and waste sterilization status. The control system ensures high reliability, simplicity, safety of operation and automatic biomedical waste process cycles.
All medical waste sterilizer and shredder models are equipped with built-in ink printer and SD card for cycle documentation.
The Integrated Sterilizer and Shredder models have numerous safety features including a safety valve, thermostat, temperature sensors, a water detection electrode, pressure sensors, a door locking device and software safety features. The controller is capable of providing an audio alarm, as well as displaying and printing several alarms. The ISS meets the highest standards for machinery, quality, safety and operation.
All hospital waste sterilization and shredding models are equipped with an energy saving mode, which is activated when the unit is not used after a certain period of time. This mode reduces power consumption by approximately 12% to 30% and is thus environmentally friendly.
The ISS line offers 5 preset cycles: 3 waste sterilization cycles, 1 test for leakage detection and 1 cleaning cycle. The 3 preprogrammed waste sterilization cycles are for normal and mixed biohazardous waste, for special hospital waste generated at the customer’s site and for glassware, where large amount of infectious glass waste is produced. Some models also have the ability to work as a medical waste autoclave without shredding, especially when large amounts of textiles have to be processed.
Our eco-friendly biological infectious waste solution provides complete sterilization with volume reduction, eliminating the costs for the biohazard waste hauler and the need of a special storage room for the collected regulated medical waste.
Celitron is committed to supplying green solutions for biomedical waste disposal with the most advanced sterilization technology, fulfilling the special needs of the hospital waste management system.
Celitron focuses on delivering new innovations into the market of sterilization and medical waste disposal, and is now bringing its expertise in this field to the agriculture and pharmaceutical markets.
|Model ISS||ISS 25L||ISS AC-575||ISS 500L|
|Chamber dimensions Inner dia. x Depth||260 x 482 mm||500 x 800 mm||840 x 923 mm|
|Chamber volume||25 l||150 l||560 l|
|External dimensions W x H x D||1070 x 1025 x 725 mm||1290 x 2150 x 2039 mm|| with housing W x H x D: 2710 x 2030 x 2300 mm|

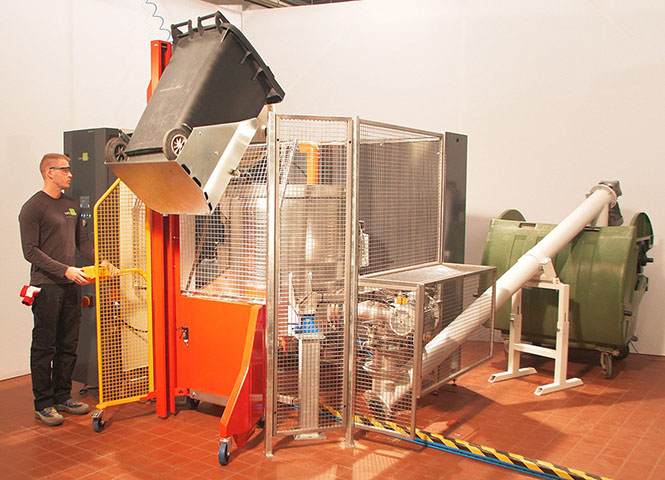

with autoloader W x H x D: 2710 x 2900 x 2800 mm
|Approximate weight||280 kg||880 kg||1500 kg|
|Average processable waste kg/h||5-7,5 kg/h *||45-67 kg/h *||100-150 kg/h *|
|Power supply**||3-Ph. 380-400 V, 50/60 Hz|
|Power with steam generator||12 kW||36 kW||110 kW|
|Available sterilization cycles||Waste 134 °C / Textiles no Cut 134 °C / Special Waste 134 °C / Glass 134 °C||Waste 134 °C / Special Waste 134 °C / Glass 134 °C|
|Available test and other cycles||Dynamic test / Cleaning cycle|
|Touch-screen display||LCD 5.7 ̋ Color Graphic||LCD 7 ̋ Color Graphic|
|Chamber door||Automatic door locking system with advanced safety features|
